Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT - 13301

No reviews yet

$235.99

SKU:: AER13301
UPC:: 684980000214
Availability:: Regularly stocked product
Weight:: 0.90 LBS
EPA:: N/A
Proposition 65:: WARNING: Cancer and Reproductive Harm
Special Order:: N
Core:: N
CARB:: This product is not CARB Legal and not for sale in California
EPA:: N/A
Proposition 65:: Y
Special Order:: N
Core:: N
CARB:: This product is not CARB Legal and not for sale in California

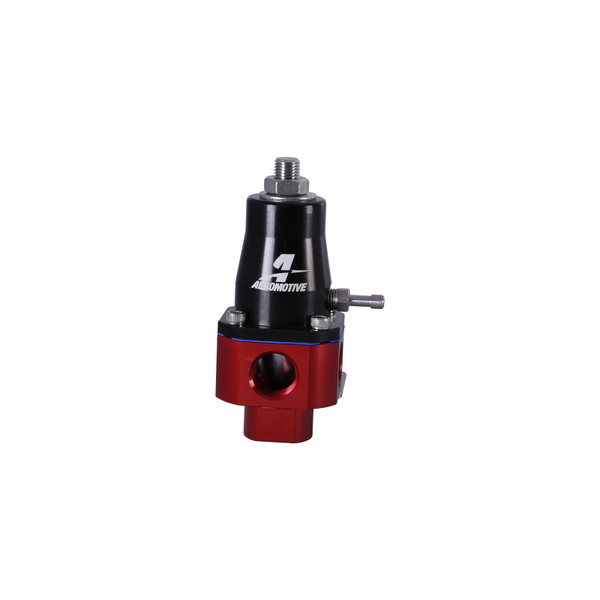

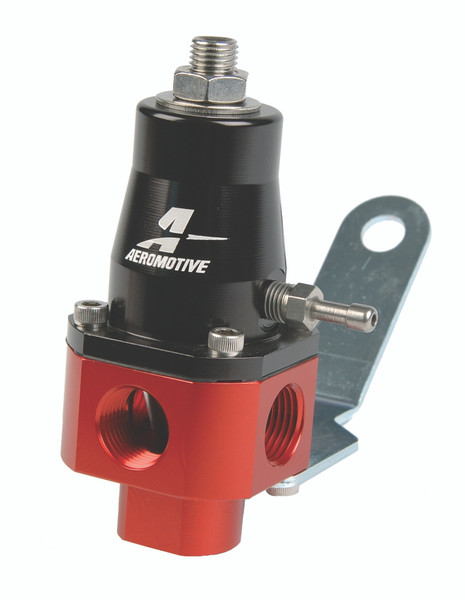

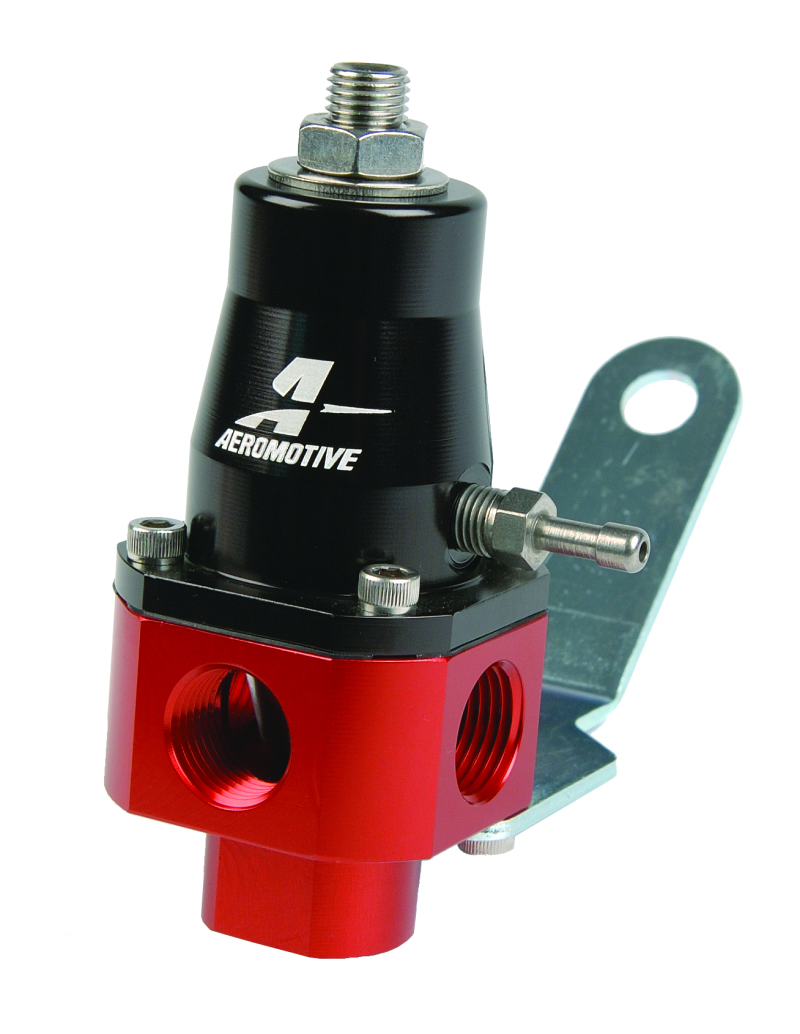

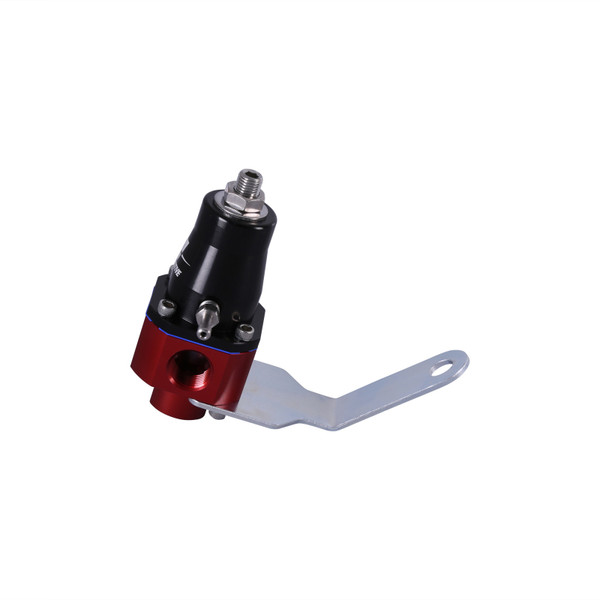

Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT - 13301

$235.99

Description

Description

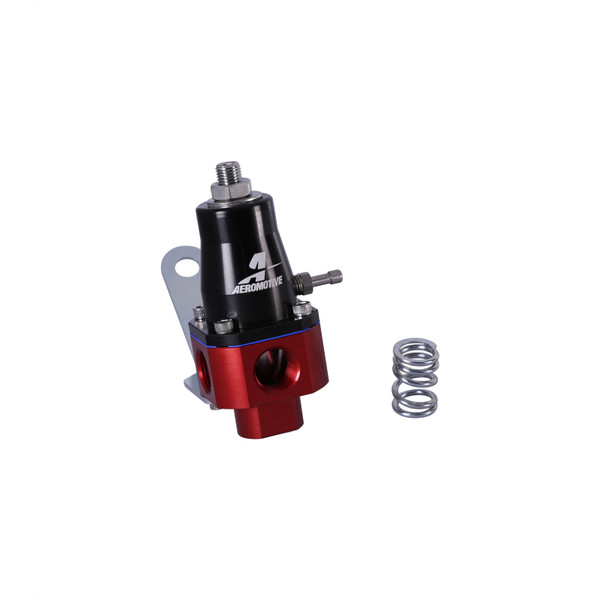

A dual purpose, universal regulator for EFI or Carbureted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high pressure spring (included). Offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive bypass regulator provides. Capable of regulating any fuel pump between 100 and 250 GPH. Fuel pressure rises on a 1:1 ratio when referencing boost. All ports are 3/8' NPT, with one inlet and three outlets on the main body and one return port on the bottom. Bypass design provides the ultimate, dynamic fuel pressure control.?Note: Requires a return line to be installed from the bottom of the regulator to the top of the tank.
