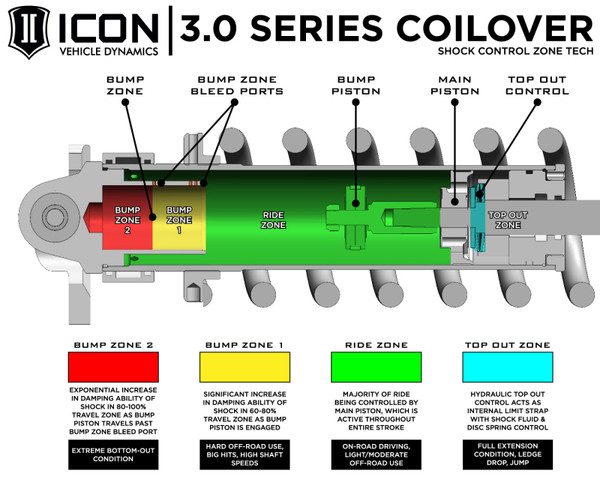

This Stage 3 system features the 2022-2025 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDC Valves. These adjustable coilovers allow up to 2-3.25” of lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40% increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions.
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2022-2025	Toyota	Tundra	1794 Edition
2022-2025	Toyota	Tundra	Limited
2022-2025	Toyota	Tundra	Platinum
2022-2025	Toyota	Tundra	SR
2022-2025	Toyota	Tundra	SR5
2022-2025	Toyota	Tundra	TRD Pro
